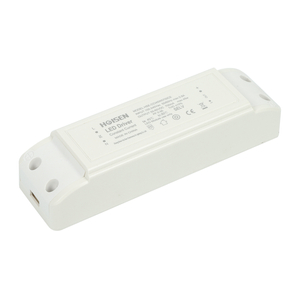

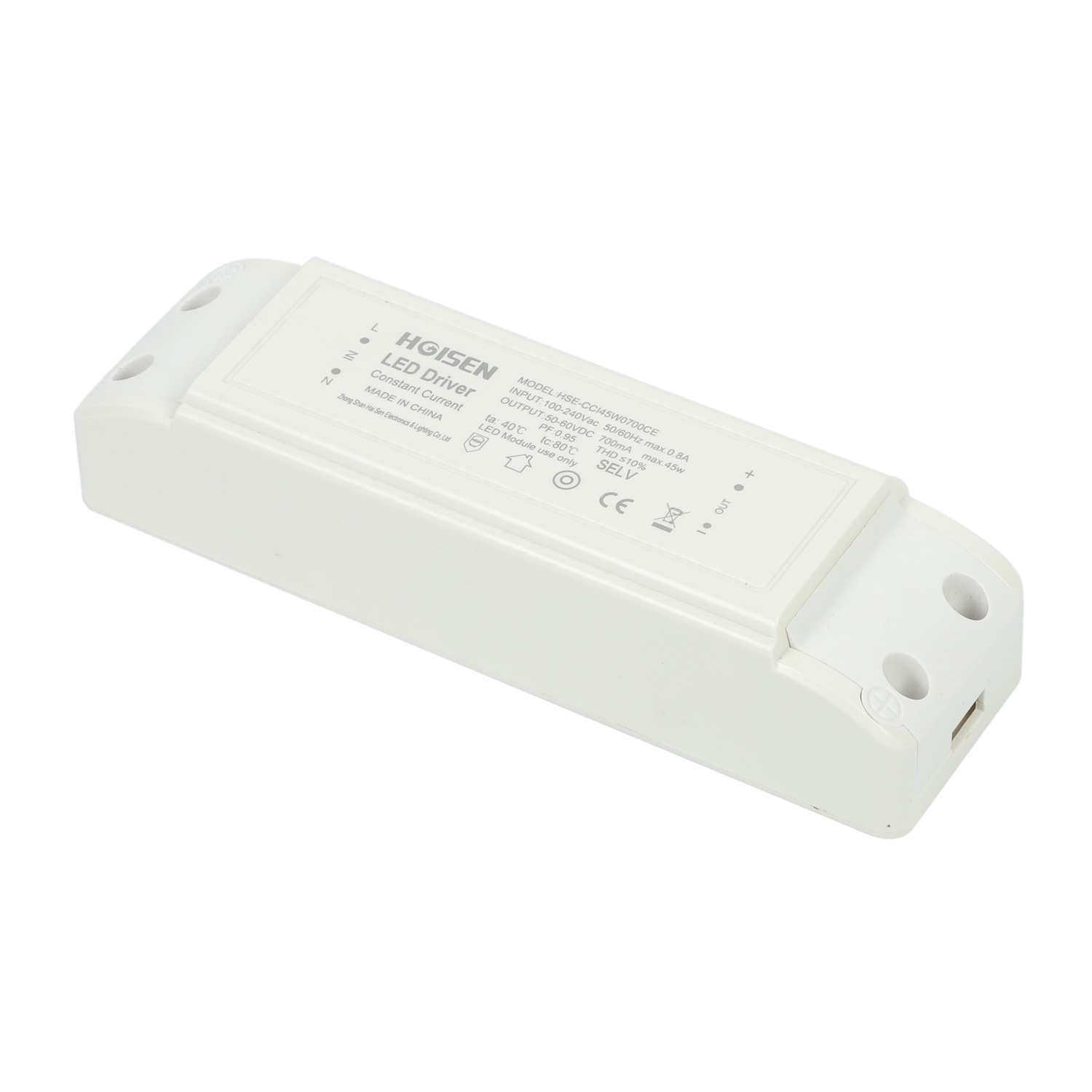

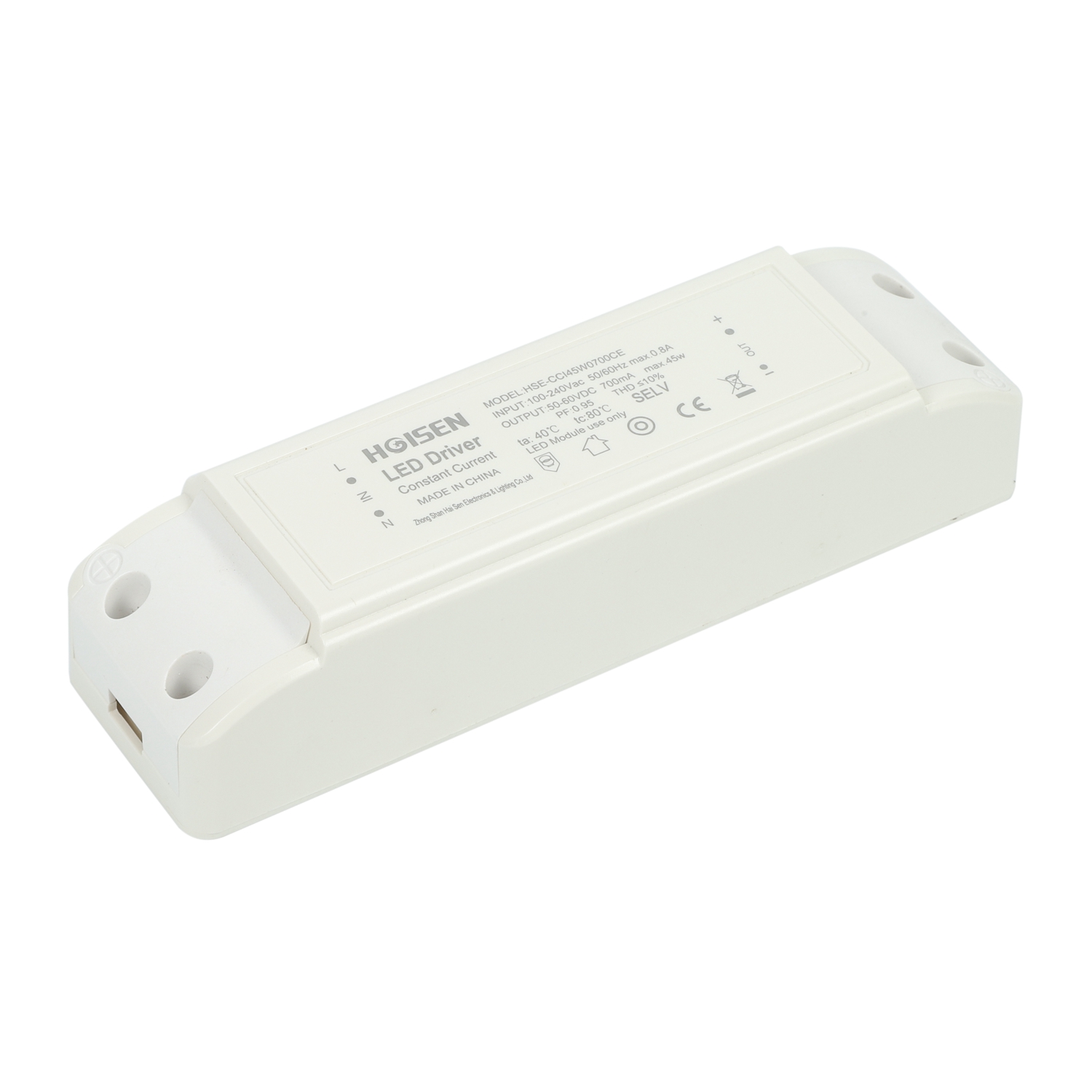

36W LED driver for panel light

1. Input: 100-240VAC

2. Output: 30-40VDC 1000mA Constant current LED driver

3. 100% Full Rated output power .

4. High Efficiency > 88% , low temperature.

5. Excellent stability and quality guarantee

6. With OCP, SCP and Automatic recovery funcation

1. Features:

Constant current and Isolated design

100% Full Rated output power

High PFC >0.95 and low THD

Excellent stability and quality guarantee

With OCP, SCP and Automatic recovery funcation

2. Technical Specification :

Model : HSE-CCI36W1000CE

Input 200-240VAC 50/60 Hz

DC Output: 30-40V, 1000mA

Efficiency >88%

MTBF 50000 hours

3. Application

LED lighting project, LED panel light, LED ceiling light, LED module , LED strips and so on.
