Does wattage matter for a LED driver? Absolutely — and getting it right can make or break your lighting project. Whether you’re powering LED strips, high-power COBs, or DIY electronics, choosing the correct LED driver wattage ensures brightness, efficiency, and long-term reliability. In this guide, we’ll break down how to calculate wattage, what happens when you get it wrong, and how to match your driver to your setup.
Wattage defines how much power an LED driver delivers. It shows the rate of energy transfer from the driver to the LEDs. In simple terms, it tells us how much electrical power the system uses to produce light.
We calculate wattage using this formula: Wattage = Voltage × Current
For example, a 12V driver supplying 2 amps delivers 24 watts. This value helps us match the driver to the LED load.
There are two types of wattage to consider:
| Type | Description |
|---|---|
| Input Wattage | Power drawn from the mains or battery source |
| Output Wattage | Power delivered to the LEDs after conversion losses |
Input wattage is always higher than output wattage due to energy loss in the form of heat. Efficiency ratings tell us how much input power becomes useful output.
Wattage directly affects how LEDs perform. If the wattage is too low, the LEDs may not light up fully. If it’s too high, it can cause overheating or damage. Choosing the correct wattage keeps your LEDs running efficiently and safely.
LEDs need the right amount of power to shine at their rated brightness. Too little power makes them dim. Too much can reduce their lifespan. Underpowered LEDs may flicker or fail to start. Overpowered LEDs can burn out quickly or suffer from thermal stress. Higher wattage means more heat. If the driver or LED can’t handle it, components may overheat. Proper wattage helps manage temperature and ensures safe operation.
Choosing a driver that can’t handle your LED load can cause problems. LEDs may flicker or look dim because the driver can’t deliver enough power. It struggles to keep up, forcing it to work harder than designed. This strain causes the driver to overheat, leading to thermal shutdown or permanent failure. LEDs also suffer from inconsistent brightness, and their lifespan shortens when power delivery is unstable.
| Issue | Impact |
|---|---|
| Flicker/dim | Poor lighting quality |
| Overheating | Driver damage risk |
| Low power | Shortens LED lifespan |
Using a driver with much higher wattage than needed isn’t always better. It can waste energy, especially if the driver operates outside its optimal efficiency range. If the driver lacks proper current regulation, it can push too much current into your LEDs, causing overheating or LED burnout. Overpowered drivers also cost more without adding real benefit to your system.
| Issue | Impact |
|---|---|
| Energy waste | Higher bills, lower efficiency |
| Excess current | LED damage risk |
| Higher cost | No added value |
Constant voltage drivers provide a stable output voltage, typically 12V or 24V. They are commonly used for LED strips and low-power LED modules. The wattage of a constant voltage driver is determined by the total current drawn by the connected LEDs. For example, a 12V LED strip that draws 5 amps will consume 60 watts (12V × 5A = 60W). It is crucial to match both the voltage and wattage of the driver to the LED load. If the wattage is too low, the driver may overheat or fail. If the voltage is incorrect, the LEDs may not light up properly or could be damaged.

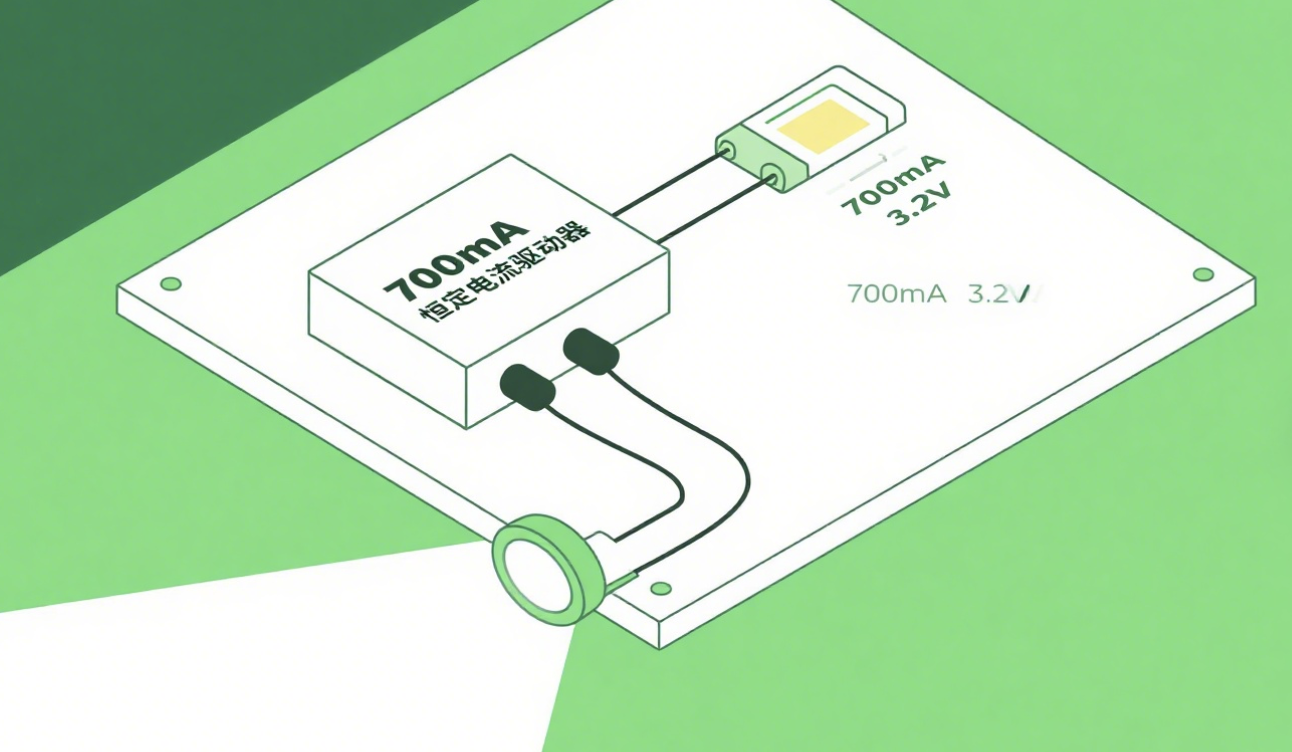

Constant current drivers deliver a fixed current, such as 350mA, 700mA, or 1A. They are ideal for high-power LEDs and COB (Chip on Board) modules. The wattage of a constant current driver is calculated by multiplying the output current by the forward voltage of the LED. For instance, a driver supplying 700mA to an LED with a forward voltage of 3.2V will deliver 2.24 watts (0.7A × 3.2V = 2.24W). Since different LEDs have different forward voltages, the total wattage can vary even if the current remains the same. It is essential to select a driver that matches the current requirement and can handle the combined forward voltage of all LEDs in the circuit.
Understanding the differences between constant voltage and constant current drivers helps you choose the right one for your application. Always check the LED specifications and driver ratings to ensure compatibility and optimal performance.
Efficiency measures how effectively an LED driver converts input power into usable output power. It is expressed as a percentage. For example, a driver with 90% efficiency converts 90% of input power into useful output, while the remaining 10% is lost as heat. Higher wattage drivers often achieve better efficiency, especially under heavy loads. This is because larger components and better thermal designs reduce proportional energy losses. In large-scale installations, even a small efficiency improvement can significantly reduce energy consumption and operating costs.
| Efficiency (%) | Energy Loss (%) | Heat Output | Suitable Applications |
|---|---|---|---|
| 80% | 20% | High | Small, low-power projects |
| 90% | 10% | Medium | Residential, commercial use |
| 95% | 5% | Low | Industrial, high-power LEDs |
Selecting a high-efficiency LED driver is essential for energy savings and system reliability. We recommend choosing drivers with an efficiency rating of 90% or higher. These drivers generate less heat, reducing the need for additional cooling. Proper thermal management further improves performance and extends the lifespan of both the driver and the LED.
Look for high efficiency ratings (90% or above)
Use aluminum housings or heat sinks for better heat dissipation
Install drivers in well-ventilated areas
Avoid overloading the driver to minimize heat stress
Check for certifications like Energy Star or CE for verified efficiency
By prioritizing efficiency and thermal management, we can build LED systems that are both powerful and sustainable.
LED strips are popular for decorative and task lighting. Their wattage varies by type and density. Standard strips use 4.8W per meter. High-density models can reach 14.4W or more. To choose the right driver, first measure the total length. Then multiply by the wattage per meter. Add 20% for safety. For example, a 5-meter strip at 10W/m needs a 60W driver.
High-power LEDs and COB modules need more energy. A single 10W LED may draw 900mA. A 50W COB can draw over 4A. These LEDs generate heat. Without proper cooling, they fail early. Use heat sinks or active cooling. Match the driver’s current and voltage to the LED specs. Always include a safety margin.
In DIY projects, we often power LEDs with Arduino or Raspberry Pi. These boards use 5V or 3.3V logic. LED drivers must match both voltage and current. For example, a 12V LED strip needs a separate driver. A 5V sensor may need a low-wattage supply. Always check the total power draw. Add headroom for safety. Choosing the right wattage ensures stable performance and protects your components.
Use constant voltage drivers for LED strips
Use constant current drivers for high-power LEDs
Match driver output to your microcontroller’s input limits
Avoid overloading USB ports or GPIO pins
Start by reviewing the LED datasheet or product label. It lists key electrical parameters: voltage, current, and wattage. These values determine the minimum requirements for your driver. For example, a 12V LED strip drawing 2A consumes 24W. Choose a driver rated for at least 24W, plus a safety margin. Manufacturers often provide driver recommendations. Following them ensures compatibility and optimal performance.
The operating environment significantly impacts driver performance and lifespan. Indoor installations typically offer stable temperatures and low humidity. Outdoor or industrial environments expose drivers to temperature extremes, moisture, dust, and electrical noise. High temperatures reduce efficiency and increase failure rates. Moisture can cause corrosion or short circuits. Select drivers with appropriate temperature ranges and IP ratings for harsh conditions.
Indoor use: Standard drivers, 0°C to 40°C operating range
Outdoor use: IP65 or higher, −20°C to 60°C range
High humidity: Conformal coating or sealed enclosure
Industrial settings: Surge protection and EMI filtering
Lighting projects often grow. Adding more LEDs later is common. Choosing a driver with extra capacity avoids costly replacements. It also improves reliability. Drivers run cooler and more efficiently below maximum load. A 20–30% wattage margin is typical. For example, if your current load is 50W, select a 65W driver. This approach supports scalability and extends system life.
Proper planning ensures your LED system remains efficient, reliable, and ready for future upgrades.
Using an underpowered driver causes LEDs to flicker, appear dim, or fail to light up. The driver overheats, shortens its lifespan, and may eventually fail.
Yes, you can. A higher wattage driver provides a safety margin, runs cooler, and supports future expansion. Ensure voltage and current match your LED requirements.
Wattage influences brightness indirectly. Proper wattage ensures LEDs receive enough power. However, brightness mainly depends on current and LED efficiency.
Constant voltage drivers provide a fixed voltage (e.g., 12V). Constant current drivers supply a fixed current (e.g., 350mA). Choose based on your LED type.
High temperatures or humidity reduce driver efficiency. Choose drivers with suitable temperature ranges and IP ratings for outdoor or industrial use.
Now that you’ve seen how wattage shapes LED performance, it’s clear that choosing the right driver isn’t just a technical detail—it’s the key to reliable, efficient lighting. Whether you’re powering a short LED strip or a high-intensity COB module, matching wattage protects your investment and ensures long-term stability. If you’re unsure where to start, we’re here to help.
