Wiring a LED power supply correctly is crucial for optimal performance and safety. Incorrect wiring can lead to issues like dim lights, or worse, power failure. In this post, we’ll walk you through the proper wiring techniques, highlight common mistakes, and provide troubleshooting tips to ensure your LED system works efficiently.

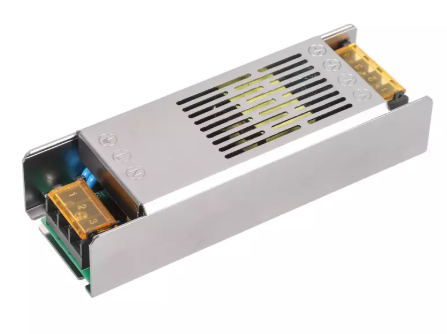

An LED power supply is a crucial component in any LED lighting system. It converts electrical power from the AC (alternating current) source to the DC (direct current) required by LEDs. Without a proper power supply, LEDs won’t function effectively.
The power supply ensures that the LEDs receive the right voltage and current. It regulates the electrical input to match the needs of the lighting system. This allows LEDs to perform at their best, providing efficient lighting and extending their lifespan.
Proper wiring is essential to get the most out of your LED setup. When you connect the LED power supply correctly, you ensure that it operates at peak efficiency. Good wiring keeps the voltage steady and ensures the right current reaches the LEDs.
Improper wiring can cause several issues. Incorrect voltage may result in dim lighting or even no lighting at all. Overvoltage or undervoltage can lead to overheating or burnout, damaging the LEDs. In the worst case, incorrect wiring can even cause electrical hazards.
Before starting, gather the essential tools to ensure a smooth installation:
Tool | Purpose |
Screwdrivers | For mounting the power supply. |
Wire Strippers | To safely strip insulation from the wires. |
Multimeter | Used to check voltage and ensure correct wiring. |
Connectors and Electrical Tape | For secure connections and insulation. |
Soldering Iron (optional) | If you’re connecting wires directly to LED strips. |
You’ll also need specific types of wire for the installation. Typically, you’ll need:
Electrical Wires: Choose wires rated for the correct voltage and current.
DC Wires: These will connect your power supply to the LED strip.
Selecting the right power supply is crucial to ensuring your LED system works properly. Start by matching the power supply’s voltage to your LED strip. Common options include:
12V Power Supply: Ideal for most residential LED strip setups.
24V Power Supply: Used for larger commercial LED installations.
Next, calculate the power requirements based on your LED strip’s wattage. For instance, if your strip consumes 5 watts per meter and you’re using 10 meters, you’ll need a supply that provides at least 50 watts.
Check the power supply’s current rating to ensure it can handle the total wattage of your setup. Always choose a power supply that exceeds the minimum wattage needed to ensure long-lasting performance and reliability.
The first step in wiring your LED power supply is to properly identify the input and output terminals. The AC input terminals are typically labeled L (live) and N (neutral). These terminals are where you will connect the AC power source, which typically runs at 120V or 240V, depending on your region.
The DC output terminals are labeled with a (+) for positive and a (-) for negative. These terminals will connect directly to your LED strip. Understanding these terminals is crucial to avoid wiring errors. Misconnections can damage the power supply, and improper connections can cause your LEDs to malfunction, leading to reduced efficiency or failure of your system.
Make sure to check the power supply’s manual to verify the terminal labeling, as some models may have different configurations. Always ensure these terminals are clearly marked for a smooth wiring process.
Now that the terminals are identified, you can begin connecting the AC power source to the power supply. For live wire (usually brown or black), attach it to the L terminal on the power supply. For the neutral wire (usually blue), attach it to the N terminal. Secure each wire by tightening the screws on the terminal blocks, making sure no wires are loose or exposed.
Ensure correct polarity when connecting to avoid damaging the power supply. An incorrect connection can prevent the power supply from functioning or cause a short circuit. It’s a good practice to use wire nuts or screw terminals for secure and lasting connections.
Additionally, if you’re working in an environment with moisture or high humidity, consider using waterproof terminals to prevent potential short circuits. For enhanced safety, it’s always best to switch off the power source before starting this step and confirm that there is no live current using a voltage tester.
After securing the AC connections, move on to wiring the DC output to the LED strips. Connect the positive (+) terminal from the power supply to the positive (+) terminal on the LED strip. Similarly, connect the negative (-) terminal on the power supply to the negative (-) terminal of the LED strip.
It’s essential to ensure that these connections are tight and secure. Loose connections can result in flickering or intermittent lighting. You can use screw-on wire connectors, quick connectors, or soldering to ensure a secure bond between wires and terminals. If you choose soldering, ensure that the soldering iron is appropriately heated and used carefully to avoid damage.
To avoid voltage drop, especially when using longer LED strips, use thicker wires or distribute the load over multiple power supplies. Proper wiring guarantees stable current flow and optimal performance of your LED lighting system.
Once you’ve completed all the wiring, it’s time to test the connection. Use a multimeter to measure the voltage at the output terminals of the power supply. Check that the voltage reading corresponds to the specifications of your LED strip (typically 12V or 24V).
Next, power on the system and check the LED strip. If the lights do not turn on, recheck all wiring connections, especially the polarity. If you notice flickering or dim lights, it might indicate poor connections, voltage issues, or an underpowered power supply.
Inspect the power supply for overheating. An overheating power supply could be a sign of a short circuit, incorrect voltage, or overloaded capacity. If the power supply is working correctly, you should notice steady, bright lighting without any flickering or dimming.
To ensure everything is functioning correctly, run the lights for a few minutes and check for any abnormalities. If everything is stable, you’ve completed the wiring process successfully!
Lastly, if the issue persists after multiple checks, consider consulting a professional to troubleshoot further or replace faulty components. Proper installation and testing are essential for a reliable LED lighting system that will last for years.
Using a power supply with the wrong voltage can cause your LED strips to underperform or stop working entirely. If the voltage is too low, the LEDs won’t light up fully, or they may flicker. If it’s too high, the LEDs may burn out quickly.
To avoid this mistake, always check the voltage rating of both your power supply and your LED strip. Match them correctly — for example, use a 12V power supply for a 12V LED strip. If you’re unsure, always refer to the product’s specifications.
Each LED strip has a specific power requirement based on its wattage. Overloading your power supply by exceeding its capacity can lead to overheating, voltage drops, or even failure.
To ensure your power supply is sufficient, calculate the total wattage required by your LED strips. For instance, if each strip consumes 5W per meter and you have 10 meters, the total power needed is 50W. Select a power supply with a capacity that exceeds this requirement, allowing room for safety.
Loose or poor connections can cause LEDs to flicker or not work at all. This could also create safety hazards, such as short circuits.
To avoid this, always make sure to tightly connect wires to the terminals. Use proper connectors, and if you’re unsure, consider using a soldering iron for more secure connections. Double-check all connections before powering up your system to ensure reliability.
If your LED lights aren’t turning on, there are a few common causes to check. First, verify that the wiring is correct. Incorrect wiring, such as reversed polarity or loose connections, can prevent the lights from working.
Here’s how to troubleshoot step-by-step:
1.Double-check the wiring: Ensure the positive (+) and negative (-) terminals are connected correctly.
2.Inspect the power supply: A damaged power supply may be the issue. If it’s not supplying power, try replacing it.
3.Test the voltage: Use a multimeter to measure the voltage at the LED strip. If the voltage is too low or absent, it’s a clear sign the power supply isn’t working.
Voltage drop can occur when the electrical current doesn’t reach the LED strip properly, especially over long distances. This can result in dim or flickering lights.
Signs of voltage drop:
LEDs appearing dimmer towards the end of the strip.
Flickering lights.
A noticeable decrease in brightness.
To fix this issue:
Use thicker wires: Thicker wires reduce resistance and allow current to flow more efficiently.
Add more power supplies: If the wiring is too long, consider splitting the load across multiple power supplies to maintain steady voltage.
If you want to add dimming or color-changing features to your LED setup, an LED controller is a great option. Controllers allow you to adjust brightness and switch between colors, giving you more flexibility in how you use your LED lights.
To wire the controller correctly:
1.Connect the power supply to the controller’s input terminals.
2.Then, connect the controller’s output terminals to your LED strips.
3.For smart lighting setups, ensure the controller is compatible with your system (like Wi-Fi or Bluetooth-enabled controllers).
Always follow the manufacturer’s wiring instructions for the best results and avoid damage to the components.
Installing your LED power supply in a well-ventilated area is essential. Power supplies can get hot during operation, and poor ventilation may cause overheating, reducing their efficiency and lifespan.
Ensure the power supply has enough space around it for air circulation. If necessary, install additional ventilation, such as a small fan, to maintain optimal temperature. Proper airflow will help maintain the longevity of both the power supply and the LED strips.
Q: Can I wire multiple LED strips to one power supply?
A: Yes, you can wire multiple LED strips to a single power supply, provided the total wattage does not exceed the power supply’s capacity. Use a connector block or parallel wiring to distribute the power evenly.
Q: What happens if I use the wrong type of power supply for my LED strip?
A: Using the wrong power supply can cause your LED strips to underperform or burn out. Mismatched voltage or insufficient power may lead to dim lights or no light at all. Always match the power supply’s voltage and wattage to the LED strip’s requirements.
Q: How do I know if my LED power supply is overloaded?
A: Signs of overload include flickering LEDs, dim lighting, or the power supply overheating. To prevent overload, calculate the total wattage of your LED strips and ensure the power supply has enough capacity to handle it.
Q: Can I use a dimmable LED controller with my power supply?
A: Yes, you can use a dimmable LED controller. Simply wire the controller between your power supply and LED strips to adjust the brightness. Ensure that the power supply is compatible with dimming features.
Q: How do I fix voltage drop issues in my LED setup?
A: Voltage drop can cause dimming or flickering. To fix this, use thicker wires to reduce resistance or add more power supplies if you’re running long LED strips. This ensures a consistent voltage level across the entire setup.
Wiring a LED power supply involves identifying the correct terminals, connecting AC power, and securing DC output to LED strips. Ensure proper connections to avoid voltage issues. Always prioritize safety when handling electrical components. If unsure, consult a professional. Explore our products and resources to enhance your LED lighting setup.
