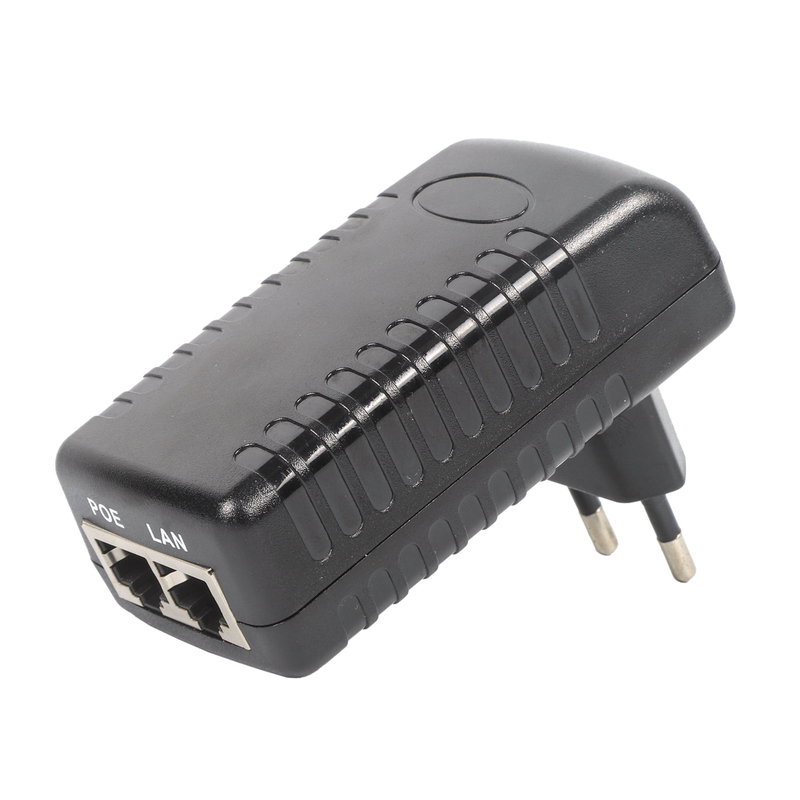

HSE-S1201500EU
HAISEN
1. Features:
Meet ERP (VI), DOE(VI), MEPS energy efficiency standards.
Safety approval of CE/EMC/LVD
Excellent stability and quality guarantee
With Circuit Protection and Automatic recovery funcation
2. Technical Specification :
Model HSE-S1201500EU
Input 100-240VAC 50/60 Hz
Output: 12VDC, 1.5A
Wallmount AC plug : EU plug
POE port RJ45 output:
PIN4,5 / + ; PIN7,8 / -.No load power consumption < 0.1W max
Load regulation ±5%
Efficiency >80%
Ripple & Noise < 100mV P-P
MTBF 50000 hours
3. Application
Consumer Electronics Products, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems and so on.
1. Features:
Meet ERP (VI), DOE(VI), MEPS energy efficiency standards.
Safety approval of CE/EMC/LVD
Excellent stability and quality guarantee
With Circuit Protection and Automatic recovery funcation
2. Technical Specification :
Model HSE-S1201500EU
Input 100-240VAC 50/60 Hz
Output: 12VDC, 1.5A
Wallmount AC plug : EU plug
POE port RJ45 output:
PIN4,5 / + ; PIN7,8 / -.No load power consumption < 0.1W max
Load regulation ±5%
Efficiency >80%
Ripple & Noise < 100mV P-P
MTBF 50000 hours
3. Application
Consumer Electronics Products, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems and so on.
