LED lighting has become the go-to choice for energy-efficient illumination, offering long-lasting and cost-effective solutions. But did you know the right LED power supply is crucial for its performance and longevity? In this article, we’ll explore what an LED power supply is, why it’s important, and how to choose the best one for your needs.
An LED power supply, often referred to as an LED driver, is a crucial component that supplies the electrical power needed for LED lights to operate. Unlike traditional light bulbs, LEDs require low-voltage direct current (DC) power, whereas most household outlets supply alternating current (AC). The LED power supply’s primary function is to convert this AC into the correct DC power that LEDs need to function properly and efficiently.

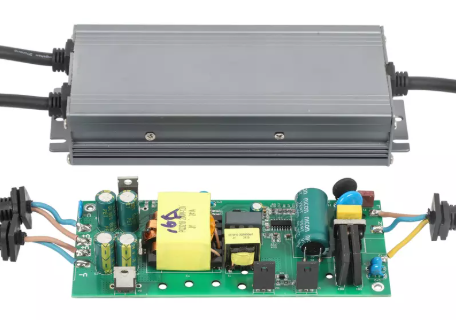

LED power supplies work by taking high-voltage AC power from your wall outlet and converting it into low-voltage DC power. The conversion process typically involves several components, such as rectifiers, capacitors, and transformers, to ensure that the power supplied is safe and suitable for the LEDs. This helps ensure your LED lights receive the exact amount of power required for optimal performance, preventing issues like flickering or premature failure. By providing a stable power source, LED power supplies help extend the lifespan of the lights and improve energy efficiency.
LED drivers serve a key role in maintaining the stable operation of LED lighting systems. They regulate both the voltage and current supplied to the LEDs, adjusting them according to the specific requirements of the LED setup. By providing constant, reliable power, LED drivers prevent fluctuations in brightness, which can lead to issues like dimming, flickering, or color inconsistency. In essence, LED drivers ensure the LEDs operate at their full potential, contributing to both the performance and longevity of the lighting system. Proper regulation is especially important in high-power LED applications, where maintaining stability is crucial to avoid damage to the LEDs or the power supply itself.
LED lights need a specific voltage and current to work properly. Unlike traditional bulbs, LEDs require low-voltage DC power to function efficiently. If the power supply doesn’t match the required voltage or current, the LED lights won’t perform as expected, leading to poor lighting or potential damage.
Using the wrong power supply can cause several issues:
Issue | Description |
Flickering | LEDs may flicker or dim if the voltage is unstable. |
Overheating | Insufficient current can cause the LED to overheat, shortening its lifespan. |
Inconsistent Lighting | A power supply mismatch can lead to inconsistent brightness, affecting your lighting setup. |
The right power supply ensures that the LEDs receive a consistent, reliable power source. This helps LEDs last longer and operate efficiently. When the power supply is mismatched, LEDs may wear out faster, leading to more frequent replacements and higher energy costs.

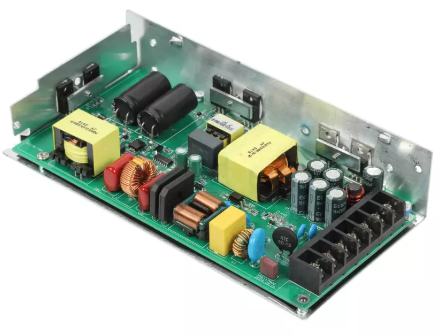

What are constant voltage power supplies?
Constant voltage LED power supplies provide a fixed output voltage, such as 12V or 24V, to the LEDs. These power supplies are designed to keep the voltage stable while varying the current.
Common applications for constant voltage power supplies
These are commonly used in LED strip lights, low-power lighting, and systems where the voltage needs to stay consistent across multiple LEDs.

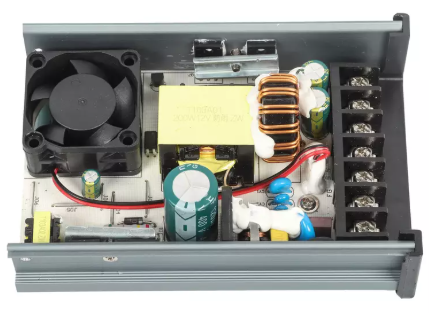

Example: 12V and 24V LED power supplies
Typical examples include 12V and 24V power supplies, often used in residential or commercial spaces for applications like under-cabinet lighting, signage, or accent lighting.
What are constant current power supplies?
Constant current power supplies provide a stable current, while the voltage can vary depending on the load. These are often required for high-power LEDs that need precise control over the current to avoid damage.
Ideal uses for constant current power supplies
These are typically used in high-power lighting applications such as street lights or large commercial LED installations, where the LED load needs consistent current control.
Example: High-power LED applications
High-power applications like stadium lighting or street lights, which demand accuracy in current regulation, often rely on constant current power supplies.
Explanation of dimmable power supplies
Dimmable power supplies allow you to adjust the brightness of your LED lights. They can work with compatible dimming systems to offer smooth control over light intensity.
Difference between TRIAC and DALI dimming methods
TRIAC dimming: Works with standard dimmer switches and is suitable for smaller setups.
DALI dimming: Uses a digital protocol for more precise control across larger, more complex systems.
Benefits of dimming capability
Dimming LED lights can save energy, extend the lifespan of the LEDs, and provide greater flexibility in adjusting lighting for different needs.

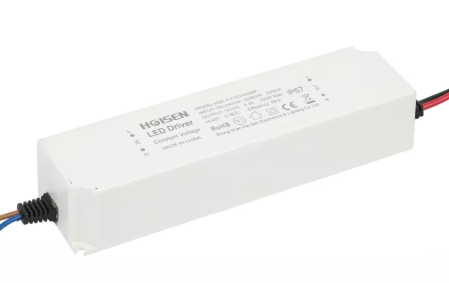

Importance of waterproof LED power supplies
Waterproof power supplies are crucial for outdoor or wet environments, protecting the lights from water damage.
IP ratings and their significance in waterproofing
IP (Ingress Protection) ratings define the level of protection from dust and moisture. A high IP rating ensures that the power supply can withstand harsh weather conditions.
Explanation of smart power supplies
Smart power supplies can be controlled remotely via Wi-Fi, Bluetooth, or apps. This allows for advanced features like remote monitoring and automation.
Use cases for smart lighting systems
Smart power supplies are ideal for systems that need remote control, such as smart homes, office lighting, or outdoor lighting systems, offering greater flexibility and energy management.
LED lights require direct current (DC) to operate, but standard electrical outlets supply alternating current (AC). Here’s how the conversion process works:
1.AC Input
The power supply receives AC power from the wall outlet.
2.Rectification
The AC current is passed through a rectifier, which converts it into pulsating DC.
3.Filtering
The pulsating DC is then filtered by capacitors to smooth out the ripples and create a stable DC output.
4.Voltage Regulation
A transformer adjusts the voltage to the correct level for the LEDs.
5.Current Regulation
Regulators ensure the current remains steady, preventing damage to the LEDs.
Rectifiers: Convert AC to DC by allowing current to flow only in one direction.
Transformers: Step down or step up the voltage to the desired level.
Choppers: Convert the DC voltage into a higher-frequency AC to efficiently control the power delivered.
Regulators: Maintain a constant current and voltage, ensuring steady output.
LEDs are sensitive to both voltage and current. If the voltage or current fluctuates too much, the LEDs may flicker, overheat, or burn out. Proper regulation ensures stable light output, prevents energy waste, and extends the lifespan of the LEDs.
Importance of matching the power supply’s voltage and current to the LED’s specifications
LEDs require a specific voltage and current to function correctly. Using a power supply with the wrong voltage or current can cause flickering, overheating, or damage to the LEDs.
How to check LED voltage and current requirements
You can check the LED’s specifications on the datasheet or packaging, which typically lists the required voltage (e.g., 12V or 24V) and current (measured in amperes or milliamperes).
Calculating wattage needed for your LED setup
To calculate the wattage, multiply the voltage by the current. For example, if your LED needs 12V and 0.5A, the power requirement is 12V × 0.5A = 6W.
The importance of allowing extra capacity for safety margins
It’s always a good idea to choose a power supply with 20-30% more capacity than your LED’s requirement. This ensures the power supply doesn’t overwork and allows for better performance and longevity.
Deciding between indoor vs outdoor power supplies based on IP ratings and environmental factors
Indoor power supplies typically have lower IP ratings. For outdoor setups, choose a power supply with a high IP rating (IP65 or above) to protect it from dust and moisture.
Need for waterproof and weatherproof features for outdoor applications
Outdoor applications, especially in wet or humid environments, require waterproof power supplies to prevent water damage. Look for IP67 or IP68 ratings for full waterproof protection.
Choosing the correct dimmable or non-dimmable power supply based on lighting needs
If you want to control the brightness of your LEDs, choose a dimmable power supply. For fixed brightness, a non-dimmable power supply will suffice.
How to select a power supply for smart lighting systems
Smart lighting requires power supplies that are compatible with smart controllers and systems like Wi-Fi or Bluetooth. Ensure the power supply supports the necessary connectivity and dimming options for smart applications.
Importance of selecting certified and high-quality power supplies for reliability and safety
Choosing a certified power supply (such as UL or CE certified) ensures it meets safety and quality standards. Certified power supplies reduce the risk of electrical failures and ensure reliable, long-lasting performance.
Flickering is a common problem when the LED power supply cannot provide stable voltage. This usually happens when the power supply is underpowered or mismatched with the LED’s voltage requirement. Voltage drop can also occur if the wiring is too long or too thin, reducing the amount of power reaching the LED.
How to avoid flickering and voltage drop:
Always ensure the power supply voltage matches the LED requirements.
Use appropriately-sized wires and keep them as short as possible to minimize resistance.
LED power supplies can overheat if they are overloaded or have poor ventilation. Overheating can cause the power supply to shut down or, in worse cases, damage the LED lights, shortening their lifespan.
How to avoid overheating:
Choose a power supply with adequate wattage capacity for your LED setup.
Make sure the power supply is placed in a well-ventilated area to keep it cool.
Opt for high-quality power supplies that come with built-in thermal protection.
Troubleshooting tips:
Check connections: Ensure all wires are securely connected to avoid power interruptions.
Inspect for damage: Look for visible signs of wear or overheating on the power supply and cables.
Test the output: Use a multimeter to check if the output voltage and current are within the recommended range for your LEDs.
Maintenance tips:
Clean regularly: Dust and dirt can block airflow and cause overheating, so clean the power supply frequently.
Monitor performance: Regularly check for signs of flickering, dimming, or other issues that may indicate a problem.
Q1: Can I use any power supply for my LED lights?
A: No, it’s important to match the power supply’s voltage and current to the LED’s specifications. Using the wrong power supply can cause flickering, overheating, or damage to the LEDs.
Q2: What’s the difference between constant current and constant voltage LED power supplies?
A: Constant voltage power supplies provide a fixed voltage, ideal for systems like LED strips. Constant current power supplies regulate current, ensuring precise control for high-power LEDs.
Q3: How do I know if my LED power supply is compatible with dimmable lights?
A: Check the product specifications or look for labels indicating dimming capabilities, such as TRIAC or DALI compatibility, to ensure it works with dimmable LEDs.
Q4: What is the average lifespan of an LED power supply?
A: The lifespan of an LED power supply varies, typically lasting 3-5 years, depending on factors like quality, usage, and environmental conditions.
Q5: How do I protect my LED power supply from overheating?
A: Ensure the power supply has proper ventilation, avoid overloading it, and choose a model with thermal protection to prevent overheating.
Choosing the right LED power supply is crucial for ensuring optimal performance and longevity. Always match voltage, current, and wattage to your LED’s requirements. Consider environmental factors, dimming needs, and certification for reliability. Regular maintenance can help keep your lighting system energy-efficient and extend its lifespan.
