Choosing the right power supply for your LED lights is crucial for optimal performance. A poor power supply can lead to flickering, premature damage, and inefficiency. In this post, we’ll explore why selecting the correct power supply is essential and how it impacts the longevity and safety of your LED system.

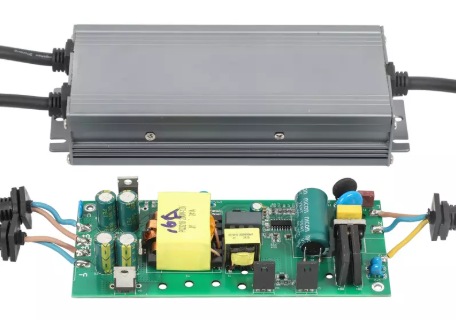

An LED power supply, often called an LED driver, is a device that converts AC (alternating current) to DC (direct current). LEDs require DC power to function efficiently, and the power supply ensures that they receive the correct voltage for optimal operation.
The LED power supply is essential for maintaining a stable and reliable voltage. This helps to keep your LED strips working at their best, preventing issues like flickering or dimming, which can occur if the voltage isn’t consistent.
This type of power supply is commonly used for standard LED strips. It provides a fixed voltage (typically 12V or 24V), ensuring that the LEDs get a steady flow of power.
Voltage | Suitable for |
12V | Standard LED strips |
24V | Longer strips or commercial lighting |
Unlike constant voltage, constant current power supplies are used for high-power LEDs, like COB (Chip-on-Board). These supplies ensure that a steady current is maintained, which is crucial for the performance of more powerful LEDs.
Application | Common Uses |
High-power LEDs | COB LEDs, large-scale lighting |
Stability | Maintains consistent brightness |
Constant voltage power supplies are the most common choice for most standard LED strips. They provide a fixed output voltage, typically 12V or 24V, ensuring that the LED strips receive a consistent, stable flow of power. This type of power supply is designed for situations where the current draw from the LED strip remains relatively consistent, making it ideal for standard installations. With constant voltage, the voltage remains fixed while the current can fluctuate based on the LED strip’s load.
Advantages: Simple to install, stable voltage, widely available.
Applications: Standard LED strips, LED tape, low-power applications.
Constant current power supplies are used for high-power LEDs, such as Chip-on-Board (COB) LEDs, which require a stable, regulated current to ensure optimal performance. Unlike constant voltage, constant current supplies adjust the voltage as necessary to maintain a constant current output, which is critical when using LEDs that have variable current requirements. These power supplies are designed to handle the complex demands of high-power LEDs in commercial or industrial applications.
Advantages: Provides stable current, suitable for high-power LEDs.
Applications: COB LEDs, large-scale lighting systems, architectural lighting, high-output installations.
Constant Voltage:
Choose constant voltage power supplies for standard LED strips where voltage consistency is essential. These are ideal for shorter strips, decorative lighting, and residential or commercial applications where current fluctuations are minimal. If the current remains stable, this type of supply ensures that the LEDs will function properly without issues.
Constant Current:
Opt for constant current when working with high-power or specialty LEDs like COB, where the current demands fluctuate or need to be tightly controlled. These power supplies are crucial for larger lighting setups, such as architectural lighting, outdoor lighting, or any installation involving powerful LED arrays. With constant current, you can ensure that the LEDs operate within their specified limits, protecting them from damage due to inconsistent current.
AC power supplies are designed to convert high-voltage alternating current (AC) from your power source into the direct current (DC) required by LEDs. Since most commercial power outlets supply AC, an AC-to-DC conversion is necessary to operate the LED lights. These power supplies are ideal when you have a large lighting system powered by AC and need to convert it to DC for the LED strips.
How it Works: Converts AC power (120V/240V) to DC (typically 12V or 24V) for the LEDs.
Applications: Industrial systems, large installations, AC-powered lighting setups.
DC power supplies provide the direct current needed to operate LED strips. These supplies typically come in 12V or 24V variants, which are the most common voltage requirements for LED strips. DC supplies are more efficient for powering LEDs because they deliver the exact voltage required without the need for conversion, ensuring optimal efficiency.
How it Works: Directly delivers the necessary DC voltage (12V or 24V) to power LED strips.
Applications: Residential, small to medium-scale installations, LED strips, low-power applications.
Advantages: High efficiency, direct power delivery, no need for conversion.
By understanding the differences between constant voltage, constant current, and AC vs. DC power supplies, you can make more informed decisions on the best power supply to use for your LED projects, ensuring both safety and performance.
LED strips typically operate at 12V or 24V. When choosing a power supply, make sure it matches the voltage required by your LED strip. Mismatched voltage can lead to malfunction or damage to your LEDs.
Ensure the power supply’s output voltage matches the LED strip’s required voltage exactly. For example, a 12V LED strip needs a 12V power supply. Using a 24V supply for a 12V LED strip could cause it to burn out.
To calculate the power draw of your LED strip, use this simple formula:
Wattage (W) = Voltage (V) × Amperage (A).
If your LED strip uses 24 watts and operates at 12V, you can calculate the required amperage like this:
24W ÷ 12V = 2A.
So, the LED strip will draw 2 amps of current.
Select a power supply with a higher wattage rating than your LED strip’s required power. For example, if your LED strip uses 24W, choose a 30W or 36W power supply. This ensures reliable performance and prevents the power supply from running at full capacity.
It’s recommended to add a 20-30% buffer to the power supply’s wattage. This extra power accounts for voltage fluctuations or future expansion. A 36W power supply for a 24W strip gives you flexibility and longevity.
Correctly matching the current is just as important as matching the voltage. A power supply must provide enough current for your LED strip to work correctly. Using a power supply that delivers too much or too little current can cause flickering or damage to the LEDs.
To calculate the required amperage, use the formula:
Amperage (A) = Wattage (W) ÷ Voltage (V).
For a 24W LED strip running at 12V, you need a power supply that can deliver at least 2A (24W ÷ 12V = 2A).
If your power supply is underpowered, LED strips may flicker, dim, or fail to operate altogether. This happens because the power supply can’t provide enough current or voltage to meet the needs of the LEDs.
To avoid this, calculate the total wattage your LED strips need and select a power supply with at least 20-30% more capacity. This buffer ensures stable operation, even if the LED load increases or fluctuates.
A voltage mismatch can cause LEDs to overheat, fail to light up, or burn out. If the voltage supplied is too high or too low, the LEDs will not perform as expected, and the power supply or LEDs may be damaged.
Always ensure the power supply’s output voltage matches the LED strip’s voltage requirements. If your LED strip runs on 12V, choose a 12V power supply. Double-check the voltage rating before installation to prevent issues.
When a power supply overheats, its efficiency decreases, and it may damage the LEDs. Overheating can occur if the power supply is not adequately ventilated or if it’s running too close to its maximum capacity.
To prevent overheating, select a power supply with built-in cooling features, like a fan or heat sink. Also, ensure it’s installed in a well-ventilated area, away from heat sources or enclosed spaces that could trap heat.
Loose or incorrect wiring can cause dim, flickering, or inconsistent lighting. It can also lead to power loss or complete failure of the LED strip.
Make sure all connections are secure. Use the appropriate connectors and wiring for your setup. Double-check each connection before powering up to ensure there’s no risk of poor contact or short circuits.
When choosing a power supply, energy efficiency is crucial for reducing long-term costs. Look for power supplies with high-efficiency ratings to ensure they convert as much power as possible into usable energy, minimizing waste and lowering electricity bills.
The power factor measures how effectively electricity is used by a power supply. A high power factor indicates that the power supply is converting power efficiently, reducing waste. Look for a power supply with a power factor of 0.9 or higher for optimal efficiency and less strain on your electrical system.
Certifications such as UL, CE, and FCC ensure the power supply meets strict safety and quality standards. These labels show that the product has been tested for performance, safety, and reliability, reducing the risk of malfunction and ensuring compliance with industry regulations.
Safety features like short-circuit protection and overcurrent protection are important to look for. These features help prevent damage to the power supply and LED strips by automatically shutting off the power if something goes wrong, protecting both the components and users.
IP (Ingress Protection) ratings indicate the level of protection a power supply offers against dust and water. For outdoor installations or areas exposed to moisture, choose a power supply with a higher IP rating, such as IP65 or higher, to ensure it can withstand environmental conditions.
When selecting a power supply, consider its IP rating to ensure it fits the installation environment, whether indoor or outdoor.
Q1: What happens if my power supply is too powerful for my LED strips?
A: Using a higher wattage power supply is safe, as the LEDs will only draw what they need. However, excessive power can result in wasted energy and potentially reduce the lifespan of the power supply.
Q2: How to choose the best power supply for multiple LED strips?
A: Calculate the total wattage of all the LED strips and select a power supply that can handle the combined load. It’s important to choose a power supply with an added buffer (around 20-30%) to ensure smooth operation.
Q3: Can I use a 24V power supply for a 12V LED strip?
A: No, you should never use a 24V power supply for a 12V LED strip. The voltage needs to match exactly to prevent damage to the LEDs.
Q4: How do I calculate the power requirements for my LED strips?
A: To calculate the power requirements, multiply the wattage per meter by the length of the strip. For example, a 5-meter strip using 5W per meter would need a 25W power supply.
Q5: Can I use a dimmable power supply for non-dimmable LED strips?
A: Yes, but it’s unnecessary. Non-dimmable LED strips don’t require a dimmable power supply. It may work, but you won’t be able to use the dimming feature.
When selecting the right power supply for your LED, consider voltage, wattage, current, and efficiency. Matching these factors ensures optimal performance. Choosing the correct power supply will extend the lifespan of your LED system and prevent issues like flickering or overheating. Always calculate the power requirements and ensure the supply meets your LED’s needs.
